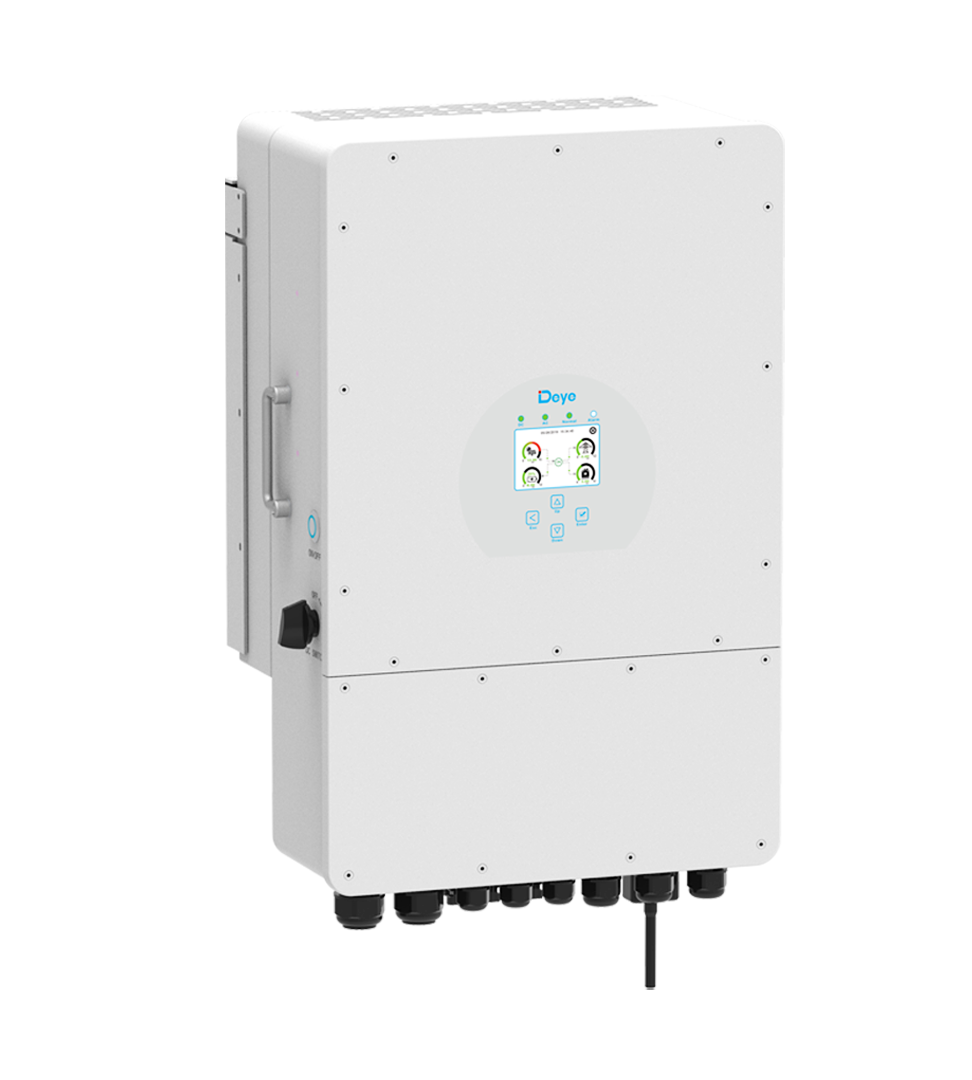

Deye 48v 12KW Hybrid Inverter 12000Watt 380v Three Phase

Improving Business Benefits

Deye full series string inverter supports VSG application. When grid failure, the string inverter is able to work with diesel generator directly without any additional EMS device. With this frequency droop feature, Deye string inverter is capable of using in poor grid area.

• Max Efficiency of 97.6%
• 2 MPPT (Maximum Power Point Tracker)
• RS485 / CAN Communication Ports
• Load or Home power first with Zero Export to the Grid
• IP65 Ingress Protection
• High Power Factor
• 2 kinds of AC couple method to update existing solar system to energy storage system
• Supports Generator Connection
• Six stages time of use setting
• Support multiple parallels
• Touchscreen Interface
• Update existing solar on-grid system to a hybrid system
• Use Gen input as crucial load output
• Compatible with PYLONTECH, LG, BYD etc, brand battery
• Output: 230V/400V AC Three Phase @ 50Hz/60Hz
• PV Rapid Shutdown Control, PV Arc Fault detection, input lightning protection, multiple inverters in parallel
• Multiple working modes: Grid-Tied, Hybrid or Off-Grid
• Simultaneously manages power to / from Panels, Batteries, Grid, Load, and Generator
• UPS time: less than 5ms
• Charge and Discharge up to 240A, 12Kw
• Wall Mounted
• Deye 48v 12KW
